POTENTIOMETER PC16ECO/HA SWITCH
1 Amp. (or 4 Amp.) single pole rotary switch mounted on an ECO potentiometer, spindle axis is mounted horizontal to the printed circuit board (pcb).

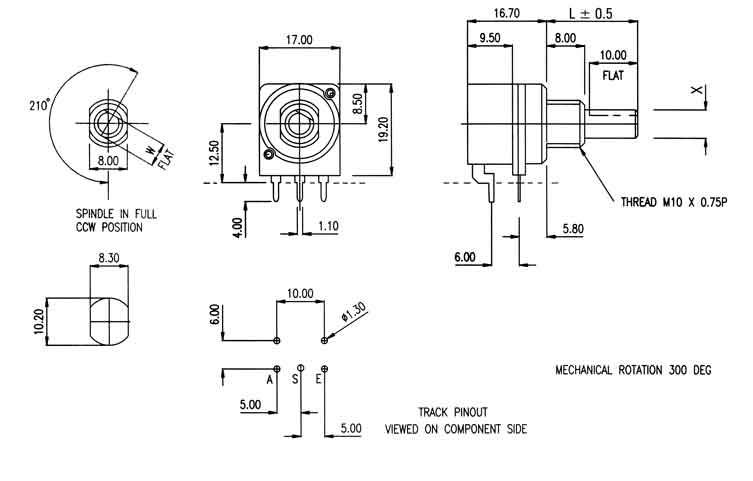

Spindle height = 12.5mm and Terminal pitch = 6mm.
Switch Specification:
- Contact rating: 1A/250V AC (BLACK switch module)
- NO, CLOCK-wise to CLOSE (Standard switch function only)
- Contact rating: 4A/250V AC (WHITE switch module)
- Choice of switch function:
- Normally OPEN, CLOCK-wise to CLOSE (Standard)
- Normally CLOSED, CLOCK-wise to OPEN (Option 1)
- Normally OPEN, ANTI-clockwise to CLOSE (Option 2)
- Normally CLOSED, ANTI-clockwise to OPEN (Option 3)
- Proof voltage: 3KV min.
- Housing material: Glass filled polyester (UL 94 VO)
- Contact gap: 3mm (Full mains separation of contacts)
- Mechanical rotation: 300º
- Life: 10,000 (minimum) operations at rated load
- Choice of switch function:
Model PC16ECO/HA
