POTENTIOMETER PC16ECO/HR SWITCH

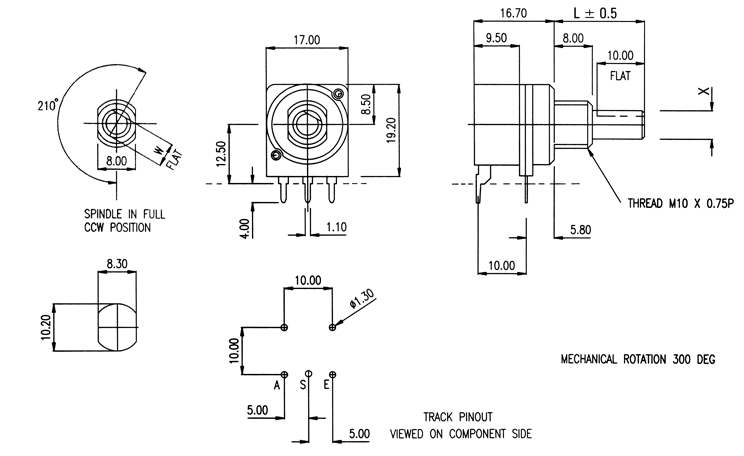

1 Amp. (or 4 Amp.) rotary switch mounted on an ECO potentiometer, spindle axis is mounted horizontal to the printed circuit board (pcb).
Spindle height = 12.5mm and Terminal pitch = 10mm.
Switch Specification:
- Contact rating: 1A/250V AC (BLACK switch module)
- NO, CLOCK-wise to CLOSE (Standard switch function only)
- Contact rating: 4A/250V AC (WHITE switch module)
- Choice of switch function:
- Normally OPEN, CLOCK-wise to CLOSE (Standard)
- Normally CLOSED, CLOCK-wise to OPEN (Option 1)
- Normally OPEN, ANTI-clockwise to CLOSE (Option 2)
- Normally CLOSED, ANTI-clockwise to OPEN (Option 3)
- Proof voltage: 3KV min.
- Housing material: Glass filled nylon
- Contact gap: 3mm
- Mechanical rotation: 300º
- Life: 10,000 (minimum) operations at rated load
- Choice of switch function:
Model PC16ECO/HR
Please complete details below and click 'Send Form'
MODEL (see above for explanation of switch functions)
Bush Housing M10 x 8mm long, common to all ECO potentiometers
VALUE and LAW:
| Quantity | |
| Order No. (As applicable) |
|
| Date Required | |
| Email Address | |
| Telephone No. | |
| Fax. No. | |
| Address | |
| Spindle Length(L)* & Special Request(s) |
|
| Name | |
| Job Title | |
| Company | |
| Type of Business | |
This information is supplied in good faith but the customer is politely reminded that it is their responsibility to check the suitability of our products for their particular application. Please note that all dimensions are for reference purposes only and, as it is the Company's policy to continuously improve our products, we reserve the right to incorporate changes without notice.
