POTENTIOMETER PC20BU/HS SWITCH

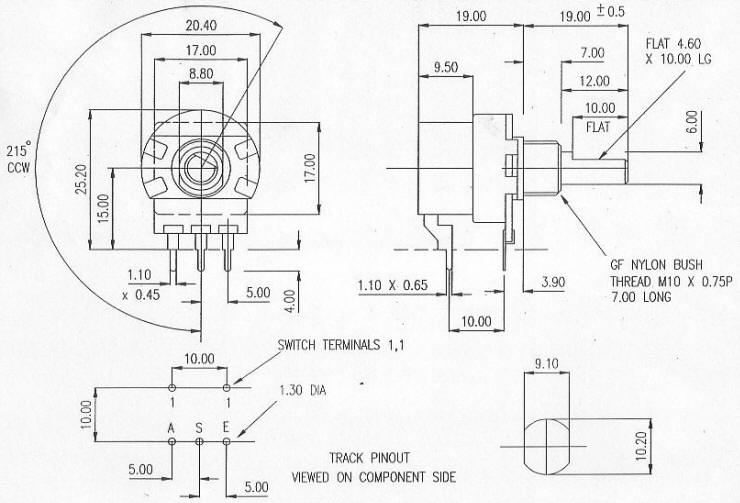

1 Amp. (or 4 Amp.) single pole rotary switch mounted on a P20 potentiometer, spindle axis is mounted horizontal to the printed circuit board (pcb).
Spindle height = 15mm and Terminal pitch = 10mm.
Switch Specification:
- Contact rating: 1A/250V AC (BLACK switch module)
- NO, CLOCK-wise to CLOSE (Standard switch function only)
- Contact rating: 4A/250V AC (WHITE switch module)
- Choice of switch function:
- Normally OPEN, CLOCK-wise to CLOSE (Standard)
- Normally CLOSED, CLOCK-wise to OPEN (Option 1)
- Normally OPEN, ANTI-clockwise to CLOSE (Option 2)
- Normally CLOSED, ANTI-clockwise to OPEN (Option 3)
- Proof voltage: 3KV min.
- Housing material: Glass filled polyester (UL 94 VO)
- Contact gap: 3mm (Full mains separation of contacts)
- Mechanical rotation: 300º
- Life: 10,000 (minimum) operations at rated load
- Choice of switch function:
Model PC20BU/HS
Please complete ALL details below and click 'Send Form'
MODEL (see above for explanation of switch functions)
VALUE and LAW:
| Specify Length L* & Special Request(s) |
|
| Quantity | |
| Order No. (As applicable) |
|
| Date Required | |
| Email Address | |
| Telephone No. | |
| Fax. No. | |
| Address | |
| Name | |
| Job Title | |
| Company | |
| Type of Business | |
This information is supplied in good faith but the customer is politely reminded that it is their responsibility to check the suitability of our products for their particular application. Please note that all dimensions are for reference purposes only and, as it is the Company's policy to continuously improve our products, we reserve the right to incorporate changes without notice.
