OMEG P20 BUSH AND SPINDLE

This page provides the basic dimensions, bush and spindle information for the P20 product range of Omeg potentiometers.

Basic dimensions
Bush options
Spindle options:
- 6.0mm Diameter
- 4.0mm Diameter
- 6.35mm Diameter
- Splined Spindle
- Dual Concentric

Go to P20 Potentiometer Data for the electrical and mechanical specifications; and
go to P20 Potentiometer Types to select the unswitched model types available in this range.

P20 BASIC DIMENSIONS

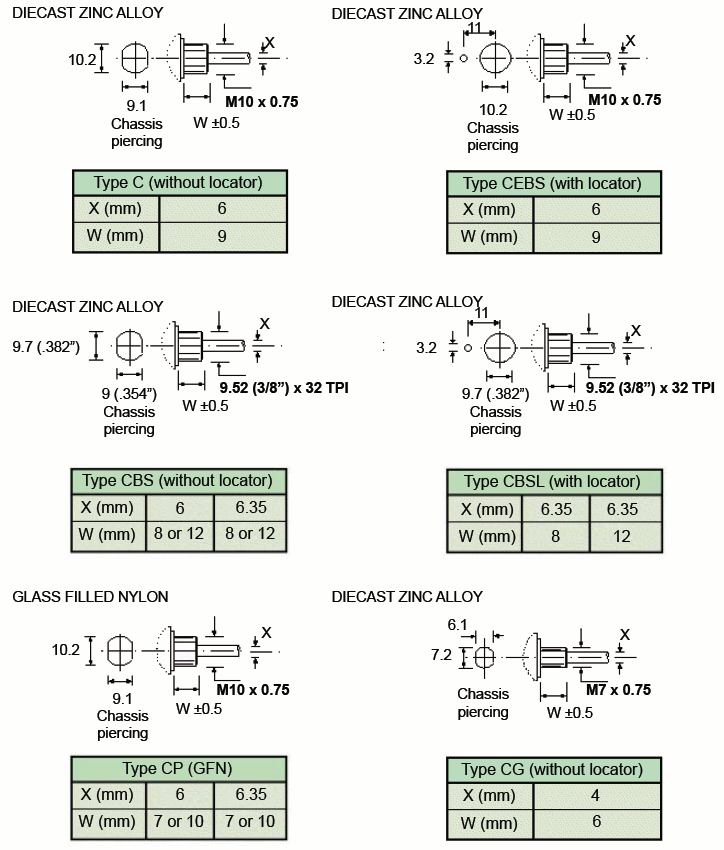

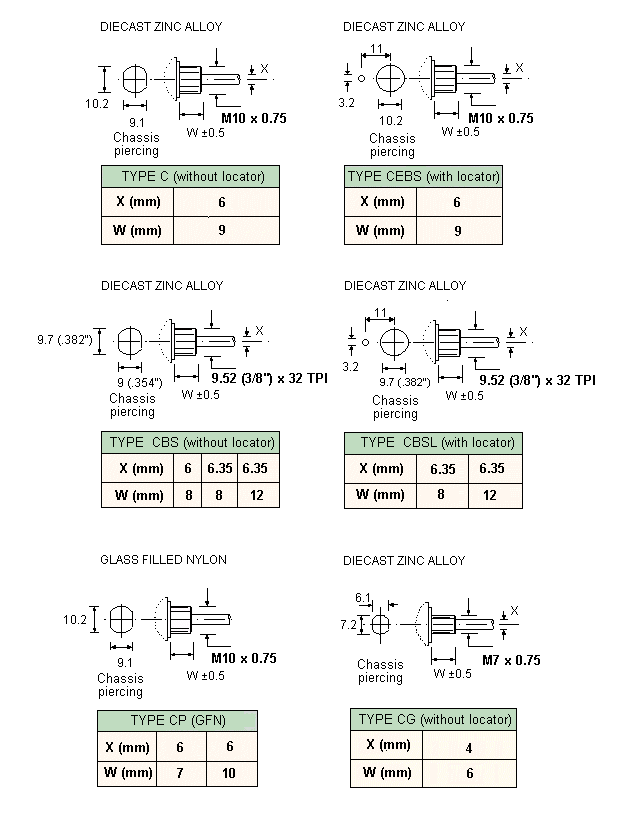

P20 BUSH OPTIONS

The P20 bushes are available in metal or nylon; with three thread options; and with or without a locating feature:

Diecast Zinc Alloy
- M10 x0.75mm pitch (Type C)
- M10 x0.75mm pitch, with locator (Type CEBS)
- 9.52mm x32tpi (Type CBS)
- 9.52mm x32tpi, with locator (Type CBSL)
- M7 x0.75mm pitch (Type CG)
Glass Filled Nylon
- M10 x0.75mm (Type CP)

Do not attempt to prevent any unwanted body rotation by overtightening the retaining nut, since this can cause thread damage, distortion, change of electrical resistance and restrict shaft rotation. BS9130:1972 provides further details on this topic. The recommended torque for tightening the retaining nut is 45cNm and this can be achieved cost effectively by using a Torque Limiting device as shown on our Accessories page.

P20 SPINDLE OPTIONS

The P20 spindles are plastic and fixed i.e. not removable, unless otherwise stated and they are available in three diameters:

6.0mm Diameter
- Cylindrical (Type F1)
- 4.0 x 12mm Flat (Type F2)
- 5.0 x 15mm Flat (Type F3)
- 5.0 x 10mm Flat (Type F4)
- 4.6mm x 15mm Flat (Type F11)
4.0mm Diameter
- Cylindrical (Type F21)
- 3.0 x 8.5mm Flat (Type F22)
- 3.0 x 13.5mm Flat (Type F23)
- Cylindrical (Type M21 - Metal)
- 3.0 x 8.5mm Flat (Type M22 - Metal)
- 3.0 x 13.5mm Flat (Type M23 - Metal)
6.35mm Diameter
- Cylindrical (Type F41)
- 5.5 x10mm Flat (Type F42)
- 5.5 x 15mm Flat (Type F43)
Splined Spindle - 6.0mm dia. 18 teeth
Dual Concentric
- Flatted/Slotted (Type M15 - Metal)
- Cylindrical (Type M16 - Metal)

6.0mm Diameter Spindles

Note: *Specials to customer's specification up to 65mm.
REMOVABLE SPINDLES, similar in specification to 'fixed'spindles are supplied seperate from the potentiometer. These can be indefinately taken in and out and their holding strength is >1kg.

4.0mm Diameter Spindles

Note: The orientation of the flat as illustrated is for plastic spindles only. For metal spindles, unless specified on the order, the orientation may be different on each potentiometer type.

6.35mm Diameter Spindles

Note: *Specials to customer's specification up to 65mm.

Splined Spindle - 6.0mm dia. 18 teeth

A splined form is available on the 6.0mm diameter P20 plastic spindle:

Alternatively a 6mm 'Splined Adaptor' (8,7mm long) can be fitted on a 4mm dia. Spindle:

Dual Concentric Spindles

This information is supplied in good faith but the customer is politely reminded that it is their responsibility to check the suitability of our products for their particular application. Please note that all dimensions are for reference purposes only and, as it is the Company's policy to continuously improve our products, we reserve the right to incorporate changes without notice.
