P16 Single

Omeg Potentiometers and Switches can be produced to your requirements using our Product Builder or for special items contact sales

Images Representative of Range

Scroll down for Datasheets with full details below

P16 Potentiometer Dimensions

Rated Power Dissipation @40°C for P16 potentiometers:

0.25W linear law
0.12W non linear law
Conductive polymer (plastic) track (over twice the life of carbon tracks)

Effective rotation: 232° nominal

Technical Data

Life Expectancy of >20,000 cycles (tested at 30 times per minute)

Permissible Axial Spindle Load: 50 N (5 Sec. maximum)
Permissible Torque at End Stop: 35 N.cm
Rotation angle: 270° ±5°
Detents available upon request: Centre, 11, 21, 31 positions

Operating Torque: 0.4 – 2.0 N.cm (Initial Torque may be higher)
Rotational torque of spindle can be made high or low

Insulation Resistance: >= 4 Gohms

Rated Resistance: E3 Series

Optional: E6 Series
Linear Law: 1K – 1M
Non linear Law: 4K7 – 470K

P16 angles of rotation

A = Initial termination
S = Wiper (or moving contact) termination
E = End termination

PC16BU Potentiometer

For connecting to a Printed Circuit (PC) Board

OW16BU Potentiometer

Ordinary Wiring (OW) Terminals. Recommended for Soldering

Soldering Guidance

LT16BU Potentiometer

Terminals Bent Long Toward (LT) the Spindle

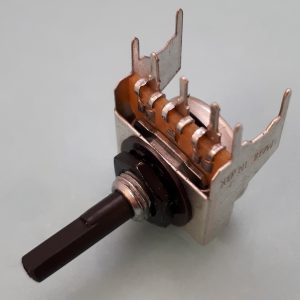

BR16BU Potentiometer

Bracket (BR) with Terminals for Printed Circuit Board

LA16BU Potentiometer

Terminals are Long bent and away (LA) from the spindle

XA16BU Potentiometer

Terminals are Long bent and far away (XA) from the spindle

FN16BU Potentiometer

Faston Connection Terminals (FN)
