1 Amp Double Pole Switch

Manufactured to EN61058-1 Standard

Omeg Potentiometers and Switches can be produced to your requirements using our Product Builder or for special items contact sales

1 Amp Double Pole Rotary Switch mounted on an ECO potentiometer.

Image Representative of range, Datasheets below.

Eco Rotary Switch Dimensions

The Datasheets below show a variety of Potentiometer Terminal options.

Available with black bush mounting upon request

Switch Specification:

  • Manufactured and tested to EN61058-1 standard
  • Contact rating: 1A/250Vac  2.5A/12Vdc
  • Surge rating (0.01 seconds) 20 Amps
  • Contact gap: 3mm (Full mains separation of contacts)
  • Proof voltage: 3KV min.
  • Housing material: Flame Retardant Glass filled polyester UL 94 VO
  • Life: 10,000 (minimum) operations at rated load
  • Mechanical rotation: 300°
  • Operating torque: 1.5 – 6 N.cm (dependent on switch selected)

Our Rotary Switch has previously been Certified by UL Demko and these Certificates are available here.

(NOTE: This was a European and NOT an American certification.)

All Switch modules have the option of either PC Terminals for Printed Circuit Boards or OW Terminals for soldering.

Eco Rotary Switch angles of rotation

Soldering Guidance

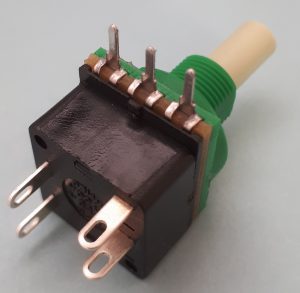

PC16ECO/B1OW2S Rotary Switch Potentiometer

B1OW2S – 1 Amp Double Pole Switch

OW – Ordinary Wiring for Soldering on Switch

PC – Printed Circuit Board Terminals on Potentiometer

OW16ECO/B1PC2S Rotary Switch Potentiometer

B1PC2S – 1 Amp Double Pole Switch

PC – Printed Circuit Board Terminals on Switch

OW – Ordinary Wiring for Soldering on Potentiometer

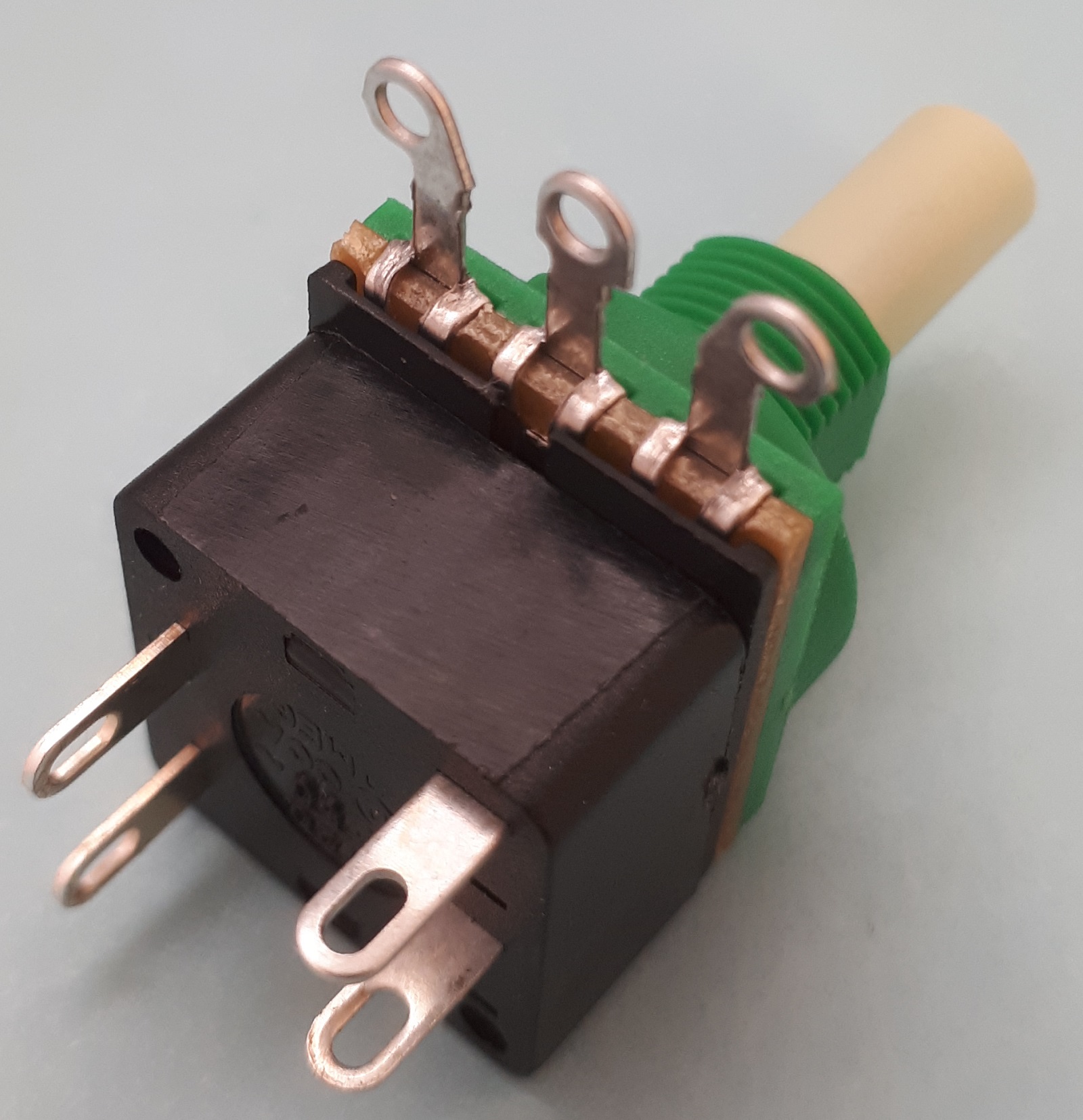

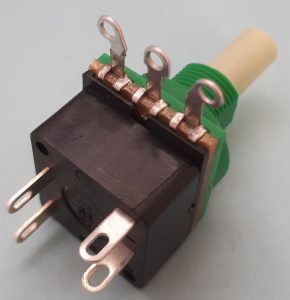

OW16ECO/B1OW2S Rotary Switch Potentiometer

B1OW2S – 1 Amp Double Pole Switch

OW – Ordinary Wiring for Soldering on Swtich and Potentiometer

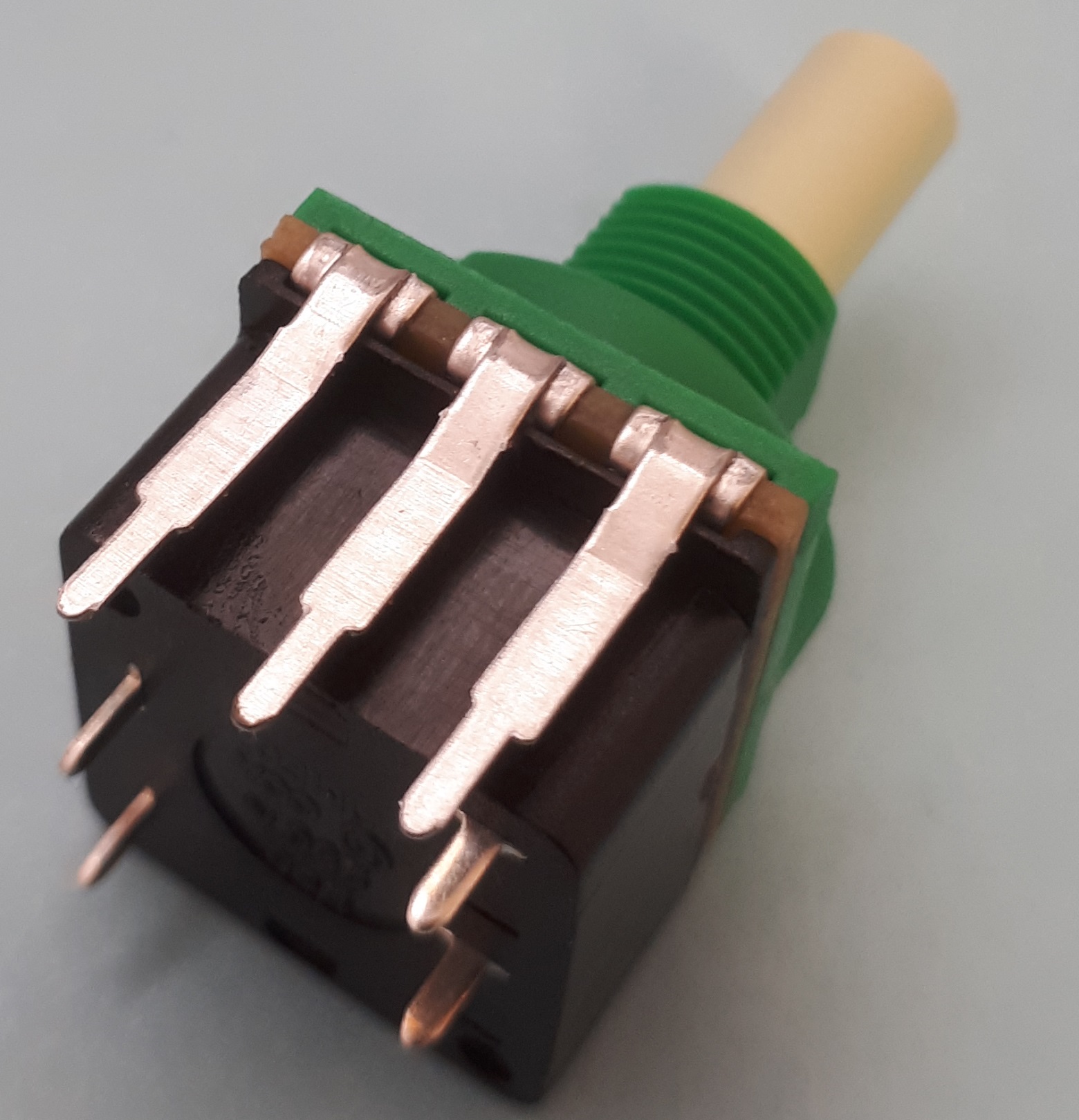

XA16ECO/B1PC2S Rotary Switch Potentiometer

B1PC2S – 1 Amp Double Pole Switch

PC – Printed Circuit Board Terminals on Switch

XA – Extra Long Terminals bent Towards Switch on the Potentiometer

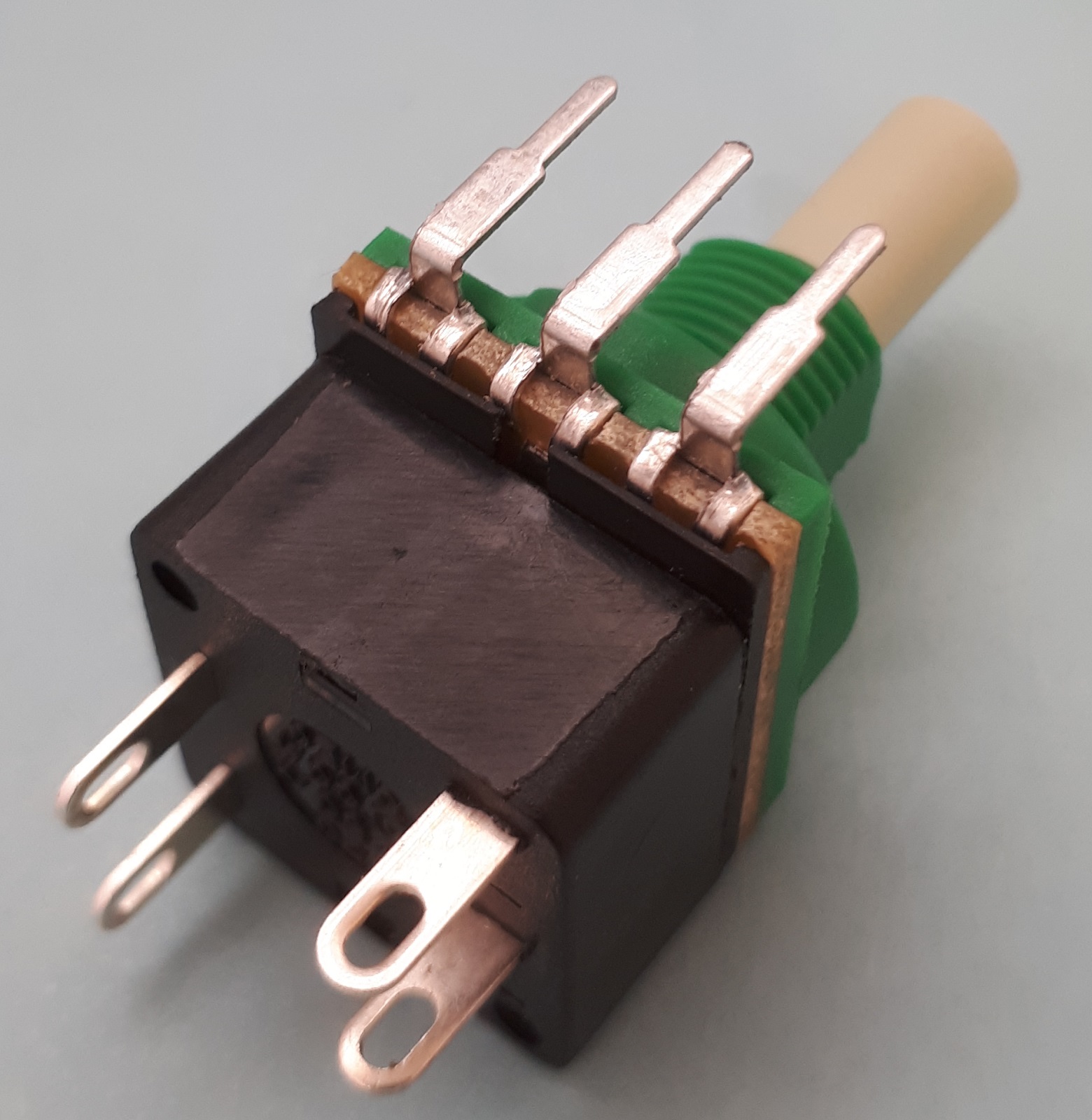

LT16ECO/B1OW2S Rotary Switch Potentiometer

B1OW2S – 1 Amp Double Pole Switch

OW – Ordinary Wiring for Soldering on Switch

LT – Long Terminals bent towards Spindle on Potentiometer

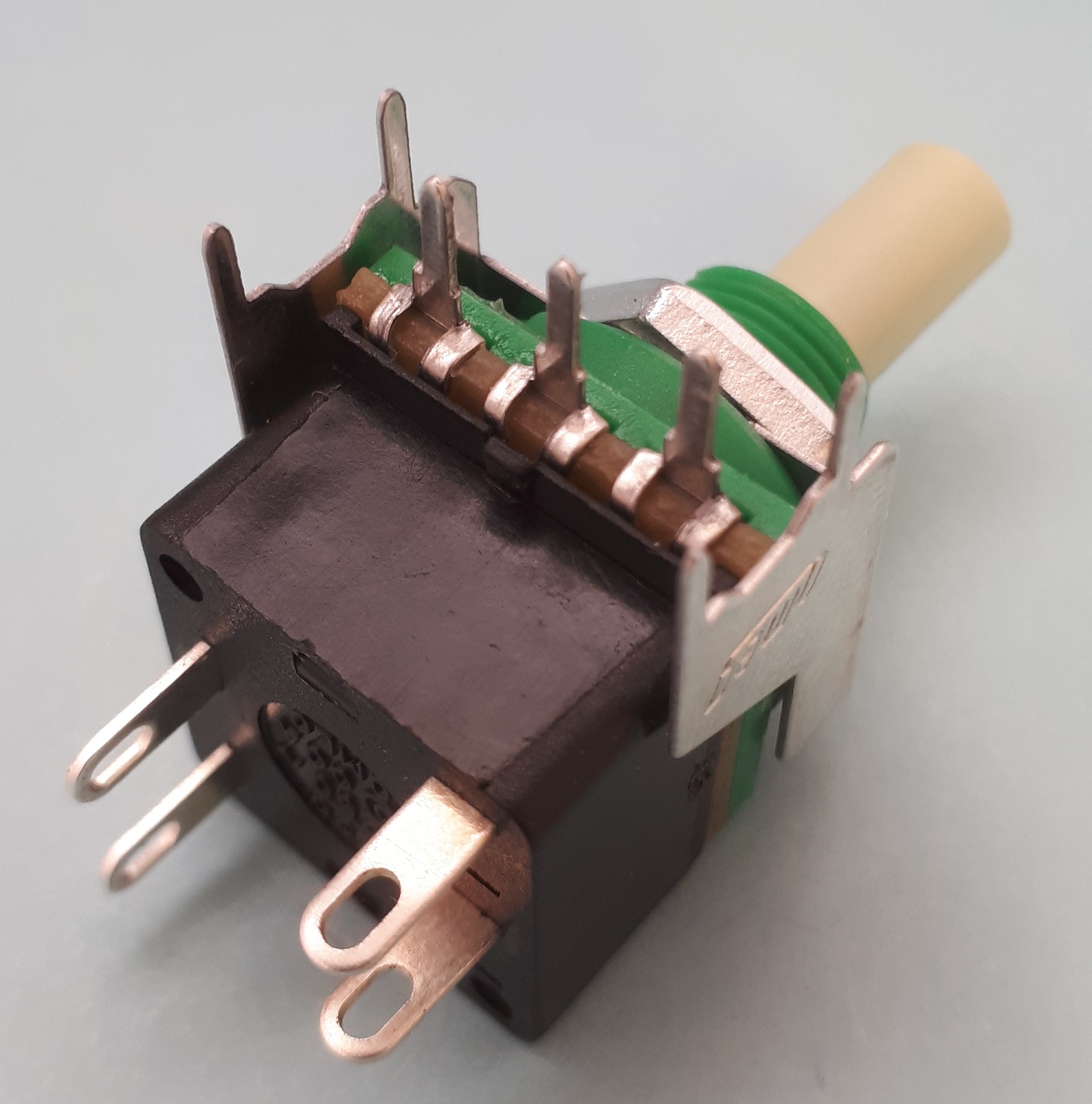

BR16ECO/B1OW2S Rotary Switch Potentiometer

B1OW2S – 1 Amp Double Pole Switch

OW – Ordinary Wiring for Soldering on Switch

BR – Bracket with PC Terminals on Potentiometer
