4 Amp Single Pole Switch
Manufactured to EN61058-1 standard
Omeg Potentiometers and Switches can be produced to your requirements using our Product Builder or for special items contact sales

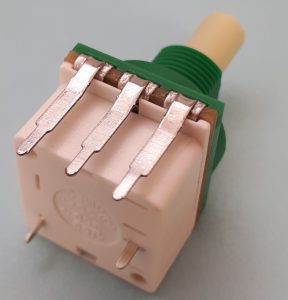

4 Amp Single Pole Rotary Switch mounted on a Potentiometer.
All 3 ranges, ECO, P16 & P20 can be fitted with a 4 Amp Rotary Switch
Our Rotary Switch has previously been Certified by UL Demko and these Certificates are available HERE.
(NOTE: This was a European and NOT an American certification.)
All Switch modules have the option of either PC Terminals for Printed Circuit Boards or OW Terminals for soldering.
Datasheets for each product in the range can be found below.
Switch Specification:
- Manufactured and Tested to EN61058-1 standard
- Contact rating: 4A/250Vac 10A/12Vdc
- Surge rating (0.01 seconds) 80 Amps
- Contact gap: 2mm (micro disconnection of switch – micro separation of contacts)
- Proof voltage: 3KV min.
- Switch contacts: Silver/Nickle
- Housing material: Flame Retardant Glass filled polyester UL 94 VO
- Life: 10,000 (minimum) operations at rated load
- Mechanical rotation: 300°
- Operating torque: 1.5 – 6 N.cm (dependent on switch selected)
ECO Range:
B4OW1S – 4 Amp Single Pole Switch
OW – Ordinary Wiring Terminals for Soldering on Switch
PC – Printed Circuit Terminals on Potentiometer
B4PC1S – 4 Amp Single Pole Switch
PC – Printed Circuit Terminals on Switch
OW – Ordinary Wiring Terminals for Soldering on Potentiometer
B4OW1S – 4 Amp Single Pole Switch
OW – Ordinary Wiring Terminals for Soldering on Switch and Potentiometer
B4OW1S – 4 Amp Single Pole Switch
OW – Ordinary Wiring Terminals for Soldering on Switch
LT – Long Terminals bent Towards Spindle on Potentiometer
B4OW1S – 4 Amp Single Pole Switch
OW – Ordinary Wiring Terminals for Soldering on Switch
BR – Bracket with PC Terminals on Potentiometer
B4PC1S – 4 Amp Single Pole Switch
PC – Printed Circuit Terminals on Switch
XA – Extra Long Terminals bent Towards Switch on Potentiometer
N4PC1S – 4 Amp Single Pole Switch
CH – Change Over (Double Throw) Switch
This Potentiometer can include OW,PC,LT,XA and BR terminals.
This Switch can include either OW or PC Terminals
P16 Range:
B4OW1S – 4 Amp Single Pole Switch
OW – Ordinary Wiring Terminals for Soldering on Switch
PC – Printed Circuit Terminals on Potentiometer
B4PC1S – 4 Amp Single Pole Switch
PC – Printed Circuit Terminals on Switch
OW – Ordinary Wiring Terminals for Soldering on Potentiometer
B4OW1S – 4 Amp Single Pole Switch
OW – Ordinary Wiring Terminals for Soldering on Switch and Potentiometer
B4OW1S – 4 Amp Single Pole Switch
OW – Ordinary Wiring Terminals for Soldering on Switch
LT – Long Terminals bent Towards Spindle on Potentiometer
N4PC1S – 4 Amp Single Pole Switch
CH – Change Over (Double Throw) Switch
This Potentiometer can include OW,PC or LT terminals and either OW or PC Terminals on the Switch
P20 Range:
B4OW1S – 4 Amp Single Pole Switch
OW – Ordinary Wiring Terminals for Soldering on Switch
PC – Printed Circuit Terminals on Potentiometer
B4PC1S – 4 Amp Single Pole Switch
PC – Printed Circuit Terminals on Switch
OW – Ordinary Wiring Terminals for Soldering on Potentiometer
B4OW1S – 4 Amp Single Pole Switch
OW – Ordinary Wiring Terminals for Soldering on Switch and Potentiometer
B4OW1S – 4 Amp Single Pole Switch
OW – Ordinary Wiring Terminals for Soldering on Switch
LT – Long Terminals bent Towards Spindle on Potentiometer
N4PC1S – 4 Amp Single Pole Switch
CH – Change Over (Double Throw) Switch
This Potentiometer can include OW,PC or LT terminals and either OW or PC Terminals on the Switch
